  Scanner Brands Contex Scanners Contex AC50

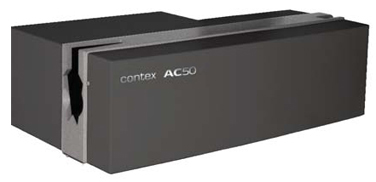

Contex AC50
High Speed Aperture Card Scanner

List Price: $31,900.00

Contex AC50 Scanners

ADVANTAGES:
High resolution aperture scan system
Low temperature emission for thermal aperture cards
MS Windows printer driver available
High performance blow back capabilities

The Contex AC50 are the perfect choice for clients with medium to high scanning volume. The gentle card transport enables trouble-free scanning of even sensitive cards with a high quality. The outstanding scanning quality, integrated grayscale imaging and high productivity are opening a wide range of applications.

Extended functionality is our standard

The Contex AC50 offer three basic functions for single card and for batch processing:

• Scan-to-File ~ The function Scan-to-File enables to scan single cards or batches of up to 100 cards directly into a file.
• Scan-to-Print ~ The option Scan-to-Print allows the user to scan single cards or batches of up to 100 cards and to print them directly over the
plotter connected.
• Scan-to-File and to-Print ~ Scan-to-File and to-Print gives you the possibility to scan, file, and directly print aperture cards via the plotter connected. In the single card mode you have the possibility to print with individual parameters.

Advanced image enhancement

Beside the basic functions the integrated image enhancement tool offers a number of outstanding image processing functions for the scanning of single cards in manual mode. This guarantees a high level digital archiving of the scanned aperture cards.

Call or Email for Pricing.


Order Today!

Contex AC50 Scanner

Contex AC50 Scanner

Brochure

Other Aperture Card Scanners

  • Specifications
  • Features
  • Options & Accessories
  • In the box
  • Warranty
Specifications for Contex AC50
Card feed-in:
Automatic, straight card path
Input:
100 cards
Output A:
100 cards (good scans or rescan)
Media:
Aperture cards: 23MIL, ISO, and DINSilver, silver duplicate, diazo film
Speed:
Up to 600 cards/h
Scan technology:
8.000 pixel CCD-Greyscale-Sensor
Resolution:
100 - 800 dpi, adjustable
Light source:
Stabilized LED lamp, maintenance-free

Reduction ratio:

 7.5x to 37x variable in 0.1 increments
Accuracy:
+/- 0.2 %
Image type:

8-bit graytone or bi-level
Supported Data Formats:
TIFF CCITT G4, TIFF CCITT G3, TIFF JPEG, TIFF Packbits,
TIFF uncompressed, CALS Type 1, Windows Bitmap, JPEG, EDMICS C4
Code Reading:
 Hollerith
Interface: USB 2.0
Host platforms: PC (min. 512 MB, USB 2.0, SP1, Windows XP)
Power supply: 100 V - 250 V, 47 - 63 Hz, 75 VA
Environment: 50° to 82° F, 15% to 85% humidity (not condensed)
Dimensions:
31.1” x 21.7” x 10”1
Weight: 44 lbs
  • High quality scans from any kind of aperture card
  • High performance – hour; AC50: 600 cards / hour
  • Better scan results at first scan due to sophisticated image
    enhancement tools
  • Storage of all Hollerith files for further processing (database)
  • The unique LED light source prevents overheating and
    guarantees an optimal processing even of thermal cards.
Software
Description Mfg# Price Cart
Nextimage SCAN
  • Contex Scanner Software
    		•  9691A040 $700.00 Add
    Nextimage SCAN+COPY
  • Contex Scanner Software
    		•  9691A057 $1,500.00 Add
    Nextimage SCAN+COPY UPGRADE (requires SCAN license installed)
  • Contex Scanner Software
    		•  9691A058 $900.00 Add
    JETimageNET Copy Software
  • Contex Scanner Software
    		•  9691A053 $1,950.00 Add

    • Power cable
    • Drivers
    • User documentation
    • 24 Months Return to Depot Warranty
    • With first six months on-site warranty
    Standard Warranty: 24 month onsite. Distributor
    invoiced at time of registration. Must be registered within 30 days of sale.
    On-Site Post Warranty
    Description Mfg# Price Cart
    Third year coverage
  • (add on to two year standard warranty) at time of scanner purchase
    		•  3YR-ADD $1,095.00 Add
    Third and Fourth year coverage
  • (add on to two year standard warranty) at time of scanner purchase
    		•  4YR-ADD $1,840.00 Add
    Third, Fourth and Fifth year coverage
  • (add on to two year standard warranty) at time of scanner purchase
    		•  5YR-ADD $2,685.00 Add
    One year onsite warranty extension
  • Purchased after the initial scanner order, but before any
    pre-existing onsite warranty expires, includes renewals.
    		•  EXTEND-ADD $1,295.00 Add
    One year onsite post warranty
  • Use this option for cases where all warranty contracts have
    expired and the end-user desires to purchase a onsite warranty.
    		•  POST-ADD $1,395.00 Add
