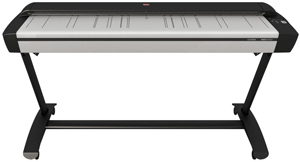

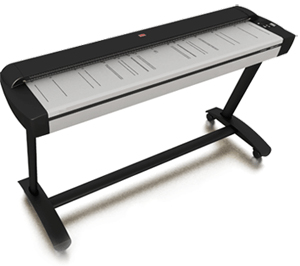

Contex HD5450

Contex HD5450
54" Wide Format Scanner


List Price: $25,900.00
Call or Email for Pricing.

Expand your business opportunities with Contex’s versatile HD5450 scanner featuring advanced technology and quality imaging for color and monochrome scanning. The large 54” imaging area is designed to facilitate archival and reprographic tasks with a wide variety of large technical documents, detailed maps and drawings, or color posters and architectural sketches – all at the highest resolution and speed.

You get exceptional professional-grade performance with 508dpi optical resolution with speeds of up to 12 inch/second. With uncompromising image quality standards, the Contex HD5450 scanner is designed for high-volume productivity for businesses-critical imaging tasks. Whether you are a private business, government or print-for-pay, Contex’s range of HD scanners is the right solution for improved efficiency and productivity.

This is a sizable scanner with a sensitive side. Featuring our advanced imaging technology, it's the ultimate With 508dpi optical resolution, the combination of highly sensitive 4-channel CCD cameras and full-sized high-quality camera lenses, the HD5450 scanner provide the best image quality available in wide format scanning. With image processing performed inside the scanner, your PC is free to run software applications more efficiently.

Despite its huge 54” imaging area, the Contex HD5450 delicately handles oversized drawings, posters, architectural sketches, detailed maps, even fine art – reproducing quality images, fast.

And it’s unbeatable on resolution, delivering the industry’s best at 120,000 pixels. You can rely on the Contex HD5450 for consistently outstanding extra-wide format scanning results.

Image Quality Without Compromise

With 508dpi optical resolution, the combination of highly sensitive 4-channel CCD cameras and full-sized high-quality camera lenses, the HD5450 scanner provide the best image quality available in wide format scanning. With image processing performed inside the scanner, your PC is free to run software applications more efficiently.

Speed When You Need

The Contex HD5450 wide format scanner is among the fastest in the business with up to 12 inch/second scanning speeds. Truly a workhorse that can handle very large originals with speed and ease. When you want productivity and reliability, the HD5450 scanner gives you the best performance and the highest return on your investment.









Order Today!
Contex HD5450 Scanner

Contex HD5450 Scanner
Contex HD5450 Scanner   Contex HD5450 Scanner


Contex HD5450 Scanner Brochure

Other Contex Scanners


54-inch ultra-wide design captures oversized
   documents easily

48-bit color and 16-bit grayscale image data
   capture from 4-channel CCD technology

Color calibration to sRGB color space

Ultra fast USB 2.0 interface with xDTR (Extended
   Data Transfer Rate)

On-board Image Processing: Built-in Sharpen, Blur
   Descreen, Error Diffusion, Adaptive Thresholding

Scan-to-Net function for scanner sharing over
   a network, and sending files to remote PCs












CLICK HERE FOR DRIVERS

  Energy Star Certified

  • Specifications
  • Parts
  • Features
  • Accessories
  • In the box
  • Warranty

Model Base Plus
Resolution 508dpi 508dpi
Enhanced resolution 1200dpi 9600 dpi
Maximum Scan Width 54in. (1372mm) 54in. (1372mm)
Maximum Media Width 56in. (1420mm) 56in. (1420mm)
Maximum Media Thickness 0.6in. (15mm) 0.6in. (15mm)
Accuracy 0.1% ± 1 pixel 0.1% +/- 1 pixel
Data Capture (color/mono) 48-bit/16-bit
Color Space sRGB
Scanning Speed (inch/sec.)
400dpi (Turbo) 24-bit RGB Color 1.5 3.0
400dpi (Turbo) 8-bit Index Color 3.0 3.0
400dpi (Turbo) 8-bit Grayscale 12.0 12.0
400dpi (Turbo) 1-bit Monochrome 12.0 12.0
Interface
High Speed USB 2.0 with xDTR Yes
Ethernet (LAN) port & Remote HTML Control No
Power, Requirements 110/220/240V, 60/50cs, 180W
Weight / Dimensions (LxWxH) 79 kg (67” x 19” x 7”) (169 x 46 x 18 cm)
Host Platform/Device Drivers Windows XP, Server 2003, Vista (32-bit only)
Certifications Energy Star, RoHS, UL, CE, GOST-R, CCC


Consumables
Description Mfg# Price Cart
Calibration Sheet, 54", packed
Contex Calibration Sheet, 54" HD 		6799D165 $351.00 Add
Care Kit, 54"
Contex Lamp cartridge, Glass plate, White background plate, & Micro fiber cloth		 2898A140 $1,531.00 Add
Filter kit, 92x92 (for 0080C032)
Contex Filter kit, 92x92 		0080C031R01 $41.00 Add
Glass Plate, 54", packed
Contex Glass Plate, 54", packed		 6729D172R01 $829.00 Add
LCAD, Lamp Cartridge, 54"
Contex Lamp Cartridge for the HD 54" scanners. 		6840A005R01 $728.00 Add
White Background Plate, 54", packed
Contex White Background Plate for HD 54" series scanners. 		6729D814R01 $128.00 Add
Adj. Tools for Roller Sensor (2 pcs.)
6779D133R01 $93.00 Add
Adj. Tools for Top Pos. Sensor (2 pcs.)
6779D246R01 $231.00 Add
Focus Pattern, 54"
Contex Focus Pattern, 54" for HD 54" series scanners. 		6779D228R01 $181.00 Add
Optical Adjustment Pattern, 54", 4 Cam.
Contex Optical Adjustment Pattern, 54" for HD 54" series scanners. 		6779D130R01 $1,086.00 Add
SCA Tool (set of 2 pcs.)
2898A106R01 $81.00 Add

Boards (Electronics)
Description Mfg# Price Cart
CBMA Camera Board (with CCD-Sensor and Mounting Plate)
6749D001R01 $1,172.00 Add
CRBC, Smart Card Reader
6831A003R01 $262.00 Add
CTX-Z07H, 68W SMPS, Triple Output
0080A064R01 $353.00 Add
IMKC, Interface Module (USB2.0 only)
6845A003R01 $646.00 Add
LMFA, Lamp and Motor Driver Board
6834A001R01 $1,042.00 Add
MDAC, Elevation Motor Driver Board
6738D003R01 $719.00 Add
SKDG, Operator Panel (Dark Grey)
6733D007R01 $443.00 Add
SUHB Controller Board
6750D002R01 $5,169.00 Add
Other Parts
Description Mfg# Price Cart
Shaft with Feed-Rollers, 54" (2 pcs.)
6729D174R02 $1,982.00 Add
Stepper Motor
0080C018R01 $215.00 Add
Camera, Adj., 508dpi (excl. Lens, CBx board and Motor)
2898A112 $654.00 Add
Camera, Fixed, 508dpi (excl. Lens and CBx board)
2898A111 $569.00 Add
Castor w/o Brake for Scanner Bogie
2205A109R01 $49.00 Add
Castor with Brake for Scanner Bogie
2205A110R01 $51.00 Add
Connector Cover (Dark Grey)
6702E007R01 $57.00 Add
Cooling Fan, 92x92 mm
Contex Cooling Fan, 92x92 mm 		0080C032R01 $89.00 Add
DC Gear Motor, 12V (Camera)
0080C022R01 $110.00 Add
Elevation Motor terminated (420mm)
6736D199R01 $747.00 Add
End Cover (Left Hand Side) (Dark Grey)
6702E005R01 $171.00 Add
End Cover (Right Hand Side) (Dark Grey)
6702E004R01 $162.00 Add
Entry Paper Sensor, assy
6729D197R01 $104.00 Add
Exit Paper Sensor, assy
6729D198R01 $104.00 Add
Fixing Screw for Scanner (10 pcs.)
2205A211R01 $85.00 Add
Gas Spring, 150N A40 (Guide Plate)
6705D264R01 $100.00 Add
Gas Spring, 90N (ATAC) (2 pcs.)
6729D364R01 $231.00 Add
Lamp Cartridge Cover (Dark Grey)
6702E006R01 $57.00 Add
Optointerrupter
0075A050R01 $55.00 Add
Original Guide Plate, complete, 54"
(ATAC) (Dark Grey Inlet Rail)
6729E011R01 $3,370.00 Add
Paper Guides (Dark Gray) (2 pcs.)
6702E003R01 $57.00 Add
Stitching Wire Kit
6375E801R02 $67.00 Add
USB2.0 Cable, A/B with Ferrite
6799D172R01 $63.00 Add
Vibration Grommet for Motor (10 pcs.)
6763D201R01 $93.00 Add
Power Entry Module
6738A122R01 $79.00 Add
RFI-Filter
This is for SD Mx52A and HD Ultra 42", HD 54" and G600 models only. 		0077E038R01 $91.00 Add
  • USB interface provides multi-functionality
  • 120,000 pixels and 0.1% +/-1 pixel accuracy
  • One-touch scanning to any computer on your network
  • Maximum color precision with 48-bit color capture
  • ENERGY SAVER and RoHS Compliant
Software
Description Mfg# Price Cart
Nextimage SCAN
Contex Scanner Software		 9691A040 $569.00 Add
Nextimage SCAN+COPY
Contex Scanner Software		 9691A057 $1,219.00 Add
Nextimage SCAN+COPY UPGRADE (requires SCAN license installed)
Contex Scanner Software		 9691A058 $900.00 Add
JETimageNET Copy Software
Contex Scanner Software		 9691A053 $1,617.00 Add
HD Upgrade (BASE to PLUS)
Description Mfg# Price Cart
Upgrade Kit
Contex Scanner Accessory		 6799E105 $1,219.00 Add
Floor Stands
Description Mfg# Price Cart
Floor Stand incl. Document Basket for 36" and 42" Scanners
Contex Scanner Accessory		 2200D020 $723.00 Add
MFP - Related
Description Mfg# Price Cart
HD MFP stand:
Special "Repro" low-stand only (compatible with HD3600 and 4200)
Contex Scanner Accessory		 2200D037 $809.00 Add
HD MFP Kit with Touchscreen:
Inlcudes special "Repro" stand, Nextimage TOUCH (English),
JETimage (all other languages), and 17-inch touchscreen
Contex Scanner Accessory		 2200D037B07 $2,271.00 Add
HD MFP Kit:
Inlcudes special "Repro" stand, Nextimage TOUCH (English),
JETimage (all other languages)
Contex Scanner Accessory		 2200D037B09 $2,495.00 Add
17-inch Touch-screen LCD:
packed without table stand - for use with MFP stands
Contex Scanner Accessory		 0090B080R01 $745.00 Add
MFP Software
Description Mfg# Price Cart
Nextimage TOUCH with Touchscreen:
Nextimage TOUCH software (English-only) and 17- inch
Touchscreen (0090B080R01)
Contex Scanner Accessory & Software		 9691A076 $1,800.00 Add
Nextimage SCAN+COPY/TOUCH
Contex Scanner Accessory & Software		 9691A075 $1,500.00 Add

  • Contex HD5450
  • 6 ft power cable
  • Drivers
  • User documentation
  • WIDEsystem scan to net software
  • 24 Months Return to Depot Warranty
  • With first six months on-site warranty
  • Scanner Maintenance Software
  • Maintenance Sheet
Standard Warranty: 24 month onsite. Distributor invoiced at time of registration. Must be registered within 30 days of sale.
On-Site Post Warranty
Description Mfg# Price Cart
Third year coverage
(add on to two year standard warranty) at time of scanner purchase 		3YR-ADD $1,095.00 Add
Third and Fourth year coverage
(add on to two year standard warranty) at time of scanner purchase		 4YR-ADD $1,840.00 Add
Third, Fourth and Fifth year coverage
(add on to two year standard warranty) at time of scanner purchase		 5YR-ADD $2,685.00 Add
One year onsite warranty extension
Purchased after the initial scanner order, but before any
pre-existing onsite warranty expires, includes renewals.		 EXTEND-ADD $1,295.00 Add
One year onsite post warranty
Use this option for cases where all warranty contracts have
expired and the end-user desires to purchase a onsite warranty.		 POST-ADD $1,395.00 Add
