Scanner Brands WideTEK Scanners WideTEK 12-650 SPECTRUM

WideTEK 12

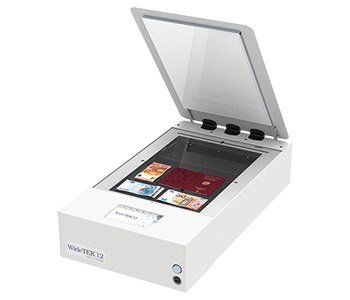

WideTEK 12-650 SPECTRUM
12" x 18.5" DINA3 Flatbed Wide Format Scanner


List Price: $8,990.00
Call or Email for Pricing.
Call or Email for quantity discounts

The WideTEK 12-650 SPECTRUM is available for applications where A3+ is large enough but fast scanning speed and high optical resolution is required. The scanner needs less than three seconds to scan the largest format of 12.5 x 18.5 inches in normal mode at 300dpi and only 12 seconds in 3D mode at 600dpi, twice as fast as the closest competition. It comes with a built-in 64bit Linux PC running on an Intel i3 quad core processor and 8GB of memory.

WideTEK 12 delivers high resolution color, black and white or grayscale images in jpeg, tiff, pdf and most other standard image output formats. It combines production ready design and uniquely compact dimensions in a new class of professional but affordable scanners.


Big Features with a Tiny Footprint

TThe WideTEK 12 SPECTRUM scanner captures images faster and more accurately than most much higher-priced lab instruments. This backlight flatbed scanner captures objects under ultraviolet (UV) at 365nm, visible light (VIS) as well as the infrared (IR) contrast of objects under IR light at 850nm in formats up to DIN A3+ (12 x 18 inch).

Another unique feature is the capability to capture 3D surfaces for industrial quality control and surface inspection applications. From Braille print on medication boxes to SMD parts on electronic boards, the superior image quality of a WideTEK 12 SPECTRUM captures every detail.

The WideTEK® 12 SPECTRUM was designed for authenticity verification of banknotes, passports, ID cards, certificates, and other special objects containing security features. The built-in backlight in the lid detects watermarks and other semi-transparent features of documents.

The scanner can be operated with the lid down if wrinkled or thin documents are scanned but it also works with the lid open. Automatic crop & deskew works perfectly in both directions, eliminating the cumbersome need of other scanners to align documents to any edges or markers.

Working with the WideTEK 12 is simple – either with a standard web browser, the built in touchscreen or a mobile device like an iPad or Android tablet, using our application for mobile devices Scan2Pad.


WideTEK 12 Compliance

Image Access scanners are environmentally friendly, comply to the highest security standards and do not interfere with other devices. We have also made sure that no harmful radiation in the form of electromagnetic emission and UV or infrared light exists. Because these kinds of scanners are heavy production machines with inherent risks to the operator, no one should operate a scanner from a vendor who cannot provide at least an IEC/UL 60950 safety report.

Image Access scanners conform to the many national and international standards which are listed below. Our scanners have been tested and certified by independent laboratories and we can also provide test reports of each standard on paper upon request.





Order Today!

WideTEK 12-650 SPECTRUM Wide Format Scanner
WideTEK 12 WideTEK 12 WideTEK 12


WideTEK 12 Wide Format Scanner Brochure

Other WideTEK Scanners


Dust-free camera technology

Intel i3 quad core processor

Large color WVGA touchscreen

1200 dpi optical resolution

Output for external monitor














CLICK HERE FOR DRIVERS



  • Specifications
  • Features
  • Accessories
  • Parts
  • In the box
  • Warranty
  Optical System

 Scanner resolution

 1200 x 1200 dpi
 Optical resolution 1200 x 600 dpi
 Pixel dimensions 9.3 x 9.3 µm
 Sensor type Tri-color CCD camera
 Grayscale resolution 12 bit grayscale (internal resolution)
 Color resolution 36 bit color (internal resolution)
 Sensor resolution 45,000 active pixels
 Scan modes 24 bit color, 8 bit grayscale, bitonal, enhanced halftone
 Scan Accuary Better than ± 0.1% across full bed.
 File Formats PDF, PDF/A, JPEG, PNM, TIFF uncompressed, TIFF G4 (CCITT), Multipage PDF, TIFF
  Scanning Speed
 Scan time, 24bit color, full bed, 300dpi Less than 3 seconds
 Scan time, 24bit color, full bed, 600dpi Less than 6 seconds
 Cycle time 300dpi, all options on Less than 6 seconds
 Cycle time 600dpi, all options on Less than 13 seconds
  Documents Specification
 Document size 317 x 470 mm, 12.5 x 18.5 inch
 Document weight Up to 10 kg / 22 lbs.
  Illumination System
 Light source Dual LED lamps with natural light diffusor
 Warm-up time None
 Temperature dependency None
 UV / IR emission None
 Lamp life time 50,000 hours (typ.)
  Electrical Specifications
  External power supply:
 Input voltage 100 – 240VAC / 2.5A / 47 – 63 Hz
 Output voltage 24 V / 6.25 A
 ECO standard CEC level V
  Power Consumption:
 Sleep ≤ 0.5 W
 Standby 2.5 W
 Scanning 90 W
  Ambient Conditions
 Operating temperature +5 to +40 °C / +40 to +105 °F
 Storage temperature 0 to +60 °C / +32 to +140 °F
 Relative humidity 20 to 80% (non-condensing)
 Noise level ≤ 45 dB(A) (operating), ≤ 32 dB(A) (stand-by)
  Product Dimensions
 Scanner outer dimensions 222 x 760 x 795 mm (H x W x D), 8.8 x 30 x 31.3 inch
 Weight of scanner 28 kg / 62 lbs.
 Dimension of transport box (palette) 360 x 520 x 900 mm (H x W x D), 14.2 x 20.5 x 35.5 inch
 Total shipping weight 40 kg / 88 lbs.
 Software
Supported OS Windows 10/8/7, Mac OS X, Linux
Scanner Driver ScanWizard
  Warranty
Standard Warranty 2 years: Limited Return to Depot


  • Full area VIS, IR scan in less than 3 seconds, UV in 12 seconds

  • Scans with UV light at 365NM to capture fluorescent emission

  • Scans with IR light at 850NM to capture infrared contrast

  • Scans with visible light (VIS) for highest color accuracy

  • Scans with 3D light to capture surface structure of objects

  • Scans with backlight to capture VIS transmission

  • Calibrates to conform with ISO 19264-1 Level A, FADGI ****, Metamorfoze guidelines

  • Borderless glass plate prevents bent edges on source documents. Scratch resistant & non-reflective.

  • 48 bit color depth

  • Captures 3D surfaces, textures of various materials, Braille print

  • 1200 x 1200 dpi scanner resolution

  • Small footprint but scans 18% more surface area than A3

  • 17.4 inch width, only slightly more than scanning area

  • Automatic crop & deskew

  • On the fly rotation while scanning facilitates postprocessing

  • Real time display of scanned images, modify images without rescanning

  • Scan2USB -- Walk up Scanning to any USB device

  • Scan2Print -- Copy to networked printers or hot folders

  • Scan2Network -- Output to network resources, SMB, FTP

  • Output formats: PDF, PDF/A, JPEG, TIFF, PNM, multipage PDF and TIFF, DICOM and many more

  • Scan2Pad® -- Operation via tablet, smartphone or other mobile device

  • Wide color gamut: supports sRGB, Adobe RGB and native RGB

Accessories
Description Mfg# Price Cart
Backlight Unit for WideTEK 12 WT12-Backlight $664.05 Add
Foot Switch S2N-FSC $128.25 Add

Software
Description Mfg# Price Cart
Batch Scan Wizard License for all WideTEK, Batch Scanning Tool
 BSW-WIDETEK $600.00 Add
Wireless Scanner Access for iPad, Android Scan2PAD $370.50 Add
There are no parts for this model currently.
  • WideTEK 12-650 SPECTRUM wide format scanner unit
  • Manuals
  • Power supply, connecting cable
  • Network cable
  • Recovery Key
  • White reference target
  • Stitching adjustment target
Standard Warranty: 2 years: Limited Return to Depot
RTD - Return to Depot
Description Mfg# Price Cart
Full Coverage Warranty for WT12‐600 HW,SW, free RTD for 12 months WT12‐600‐SP12M $899.00 Add
Full Coverage Warranty WT12-650, hardware, software for 12 months WT12-SP12M $899.00 Add
