- Specifications
- Features
- Accessories
- Parts
- In the box
- Warranty
| Model |

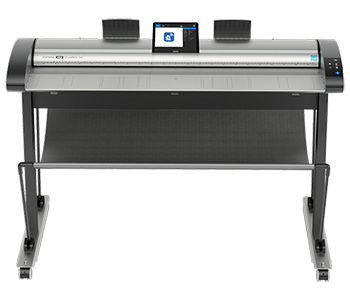

Contex IQ Quattro X 4450 |
| Resolution |
1200 dpi |
| Enhanced resolution |
9,600 dpi |
| Scanning speed (inch/sec.) |
17.8"/s in 200dpi Grayscale/Monochrome, 8.9"/s in 200 dpi RGB Color - Upgradable to 17.8"/s |
| Maximum Media Width |
47 inch (1194 mm)
|
| Scan accuracy |
0.1% +- 1 pixel |
| Maximum thickness |
0.08 inch (2 mm) |
Data Capture (color/mono)
|
48-bit / 16-bit |
| Color space |
Adobe RGB, Device RGB, RAW RGB, sRGB |
| Interface |
USB 3.0 with xDTR3 |
Weight/dimension/power
|
54.0 lbs (24.5 kg), 53.1×19.3×6.3 in (1349 × 489 × 161 mm)
18W max. / 1W / 37W (built-in power supply) |
| Device Drivers |
64-bit + 32 bit |
| System software |
Nextimage Scan+Archive, Nextimage Repro, Nextimage Remote tablet app(free download for iOS and Android) |
| Host platforms |
Windows Server 2019 64-bit, Windows 11 64-bit, Windows 10 64-bit + 32 bit |
| Certifications |
CE, cUL/UL, CCC, EAC, UKR, BIS, FCC Class A, ICES, EMC, VCCI, KC, EuP, WEEE, RoHS, REACH and ENERGY STAR® certified |
Features
- Expansion with existing plotter to repro system possible

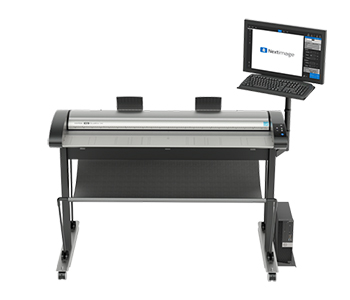

- Thanks to the high stand, the scanner can be installed above a plotter
- Productivity (60 minutes of batch scanning; including paper loading and output; measured in full scans): up to 856 documents/hour
- Interfaces: Gigabit Ethernet and USB 2.0 (IQX with USB 3.0)
- REimage by Contex: virtual rescan, saving in RAW format and subsequent lossless editing directly in Nextimage REPRO
- Color space Adobe RGB / Device RGB / sRGB
- Display and touchscreen: 21.5 inch touchscreen HD TFT LCD, 1920 x 1080 dpi
- Environmentally friendly, ENERGY STAR certified product
Up to A0/E-size originals
Return guides for easy document handling, by returning documents to the user with rewind through scanner. Return guides are detachable. Magnetic document guides can be used to support long documents and makes precise document loading easier.
 Designed for optimal ergonomic working environment. Height adjustable stand in 3 positions.
Contex CleanScan - provides leading quality
With new methods for diffusion you you will get the most natural light in your scans.
More power in every pixel
Contex CleanScan CIS modules with unmatched image quality combined with the award winning Nextimage Software.
PageDrop Enabled
Any PageDrop enabled Contex scanner can send documents directly to your preferred destinations. PageDrop does not require a PC. Instead it simply utilizes your smart phone or tablet to control the process. Load the document, scan the QR code, and send the document directly to your desired destination.
Software
| Description |
Mfg# |
Price |
Cart |
Nextimage SCAN+ARCHIVE
Contex Full-featured Productivity Scanning software |
9691A601
|
$650.00 |
Add |
Nextimage REPRO license
Contex Touch-compatible Full-featured Productivity Scan + Copy software |
9691A602 |
$1,295.00 |
Add |
JETimageNET Copy Software
Contex Touch-compatible Full-featured Copy software |
9691A053 |
$1,690.00 |
Add |
Nextimage MFP to REPRO Upgrade
Upgrade from Nextimage MFP (requires installed MFP license) |
9691A089
|
$1,425.00 |
Add |
Nextimage SCAN+ARCHIVE to REPRO
Upgrade from Nextimage Scan + Archive to Repro (Requires installed Nextimage Scan+ Archive license) |
9691A603 |
$1,050.00 |
Add |
|
Post Sale Upgrades
| Description |
Mfg# |
Price |
Cart |
IQ44 speed upgrade
Upgrade color speed on IQ X 44 from 8.9 ips to 17.8 ips
|
CS5200D552
|
$1,750.00 |
Add |
|
IQ X Accessories
| Description |
Mfg# |
Price |
Cart |
Zero Turn Scanning Productivity Center
Single footprint holding table + 20” monitor, wireless keyboard and mouse.
|
CSZTSPC-X4000
|
$3,510.25 |
Add |
| Floor Stand HD/IQ Quattro X 4400 Series
|
CS2200H017017
|
$893.00 |
Add |
| IQ Quattro X 44 ScanStation PRO Kit - Low Stand
|
CS2200H017B31
|
$1,852.50 |
Add |
| IQ Quattro X 44 ScanStation PRO Kit - High Stand
|
CS2200H007B06
|
$1,852.50 |
Add |
| High Speed Intel PC for Contex
|
CS-HDPC-Plus
|
$1,344.25 |
Add |
Document carrier sheet
18 x 24 inch transparent carrier sheet landscape
|
CS6399A402 |
$83.60 |
Add |
Document carrier sheet
24 x 36 inch carrier sheet landscape
|
6399A403 |
$112.59 |
Add |
Document carrier sheet
36 x 48 inch carrier sheet portrait |
6399D133 |
$227.65 |
Add |
USB3.0 Cable, A/B, 2m
|
2867G124
|
$183.34 |
Add |
|
Consumables
| Description |
Mfg# |
Price |
Cart |
Calibration Sheet, X44, packed
Contex Calibration Sheet, 44" IQ X 4400 |
2852D140
|
$318.77 |
Add |
Contex Scanner 44" Glass Plate
Contex Glass Plate, 44", packed |
5229A005R01 |
$293.85 |
Add |
|
Boards (Electronics)
| Description |
Mfg# |
Price |
Cart |
SUXD Controller Board
|
2852D143
|
$4,400.26 |
Add |
CBUA Board
|
2852D142
|
$836.35 |
Add |
CIS Element (1 pcs.)(JJ12H)
|
2853D133
|
$361.67 |
Add |
Power Supply #2
|
0080A074R01
|
$514.24 |
Add |
|
Other Parts
| Description |
Mfg# |
Price |
Cart |
Cover Assy, IQQX (incl Operators Panel)
This is the lamp cartridge cover for the Quattro X series scanners.
|
2852D139
|
$431.99 |
Add |
Drive Belt, IQQX
|
2852D133
|
$108.00 |
Add |
Feed Roller 44'', IQQ (2 pcs.)
|
5229D096R01
|
$1,177.92 |
Add |
Idle Rollers, IQQ44 (2 pcs.)
|
2852D122 |
$700.73 |
Add |
IQQ Lid Latch Kit, Complete
|
2852D124
|
$195.90 |
Add |
Pressure Rollers, IQQX (6 pcs.)
|
2852D138
|
$557.56 |
Add |
Pulley for Feed Rollers, IQQX (2 pcs.)
|
2852D135 |
$105.49 |
Add |
RFI Filter, IQQX
|
2852D130 |
$140.65 |
Add |
Stepper Motor with Pulley, IQQX
|
2852D132
|
$364.17 |
Add |
Contex Inlet
|
0007S046R01
|
$110.20 |
Add |
Contex Oil damper for CIS Bridge
|
2898A183 |
$288.20 |
Add |
Contex Paperguide (IQ24/44)(2 pcs.)
|
2898A186
|
$115.84 |
Add |
Contex Return Guide (IQ24/44)(1 pcs.)
|
2898A187
|
$120.00 |
Add |
Contex Paper/Lid Sensor (1 pcs.)
|
5229A031R01
|
$124.33 |
Add |
Contex USB3.0 + 1Gbit Cable, 0.4m, Panel Mount
|
2867G121 |
$259.09 |
Add |
Contex Adapter for Tube 18x12 (10 pcs.)
|
2205E032R01
|
$87.90 |
Add |
|
- Contex IQ Quattro X 4450
- Power cable
- 64-bit TWAIN application driver included for use with EDM and other imaging software
- User documentation
- Scanner Maintenance Software
- Maintenance Sheet
Standard Warranty: 24 months parts only.
Extended Spare Parts Warranty
| Description |
Mfg# |
Price |
Cart |
1 Year Warranty Extension for Spare Parts
Extends spare parts warranty to 3 years. Must register scanner within 3 months of delivery.
|
2898A124
|
$554.00 |
Add |
3 Years Warranty Extension for Spare Parts
Extends spare parts warranty to 5 years. Must register scanner within 3 months of delivery.
|
2898A125
|
$995.00 |
Add |
1 Year Warranty Extension for Spare Parts - POST (within factory warranty)
Extends spare parts warranty to 3 years. Must register scanner within factory warranty.
|
2898A141
|
$782.00 |
Add |
3 Years Warranty Extension for Spare Parts - POST (within factory warranty)
Extends spare parts warranty to 5 years. Must register scanner within factory warranty.
|
2898A142
|
$1,495.00 |
Add |
On-Site Warranty
| Description |
Mfg# |
Price |
Cart |
Onsite Service - 2 years - SD36/IQ44
"Optional 2 Years On-site Warranty for SD36/IQ44 scanners
-pricing available at time of purchase with a new SD36/IQ44 scanner" |
2898A118SD |
$925.00 |
Add |
Onsite Service - 3 years - SD/IQ44 or HD
3 Years On-site Warranty
Available only at time of purchase.
|
2898A119
|
$2,020.00 |
Add |
Onsite Service - 4 years - SD36/IQ44 or HD
4 Years On-site Warranty
Available only at time of purchase. |
2898A120
|
$2,765.00 |
Add |
Onsite Service - 5 years - SD36/IQ44 or HD
5 Years On-site Warranty
Available only at time of purchase. |
2898A121
|
$3,610.00 |
Add |
Onsite Extention - 1 year - SD36/IQ44 or HD (in warranty)
1 Year On-site Warranty
Extension
-for products currently under warranty
|
2898A122
|
$1,295.00 |
Add |
Onsite Extention - 1 year - (XD24/IQ24, SD36/IQ44 and HD - (post warranty)
1 Year On-site Warranty
-for products NOT currently under warranty. Not available on past models. |
2898A123
|
$1,395.00 |
Add |
|
|
