Contex HD Ultra X 3690

Contex HD Ultra X 3690
36" Wide Format Scanner


List Price: $10,792.00
Call or Email for Pricing
.

Call or Email for quantity discounts

HD Ultra X series is the fastest collection of scanners we’ve ever made. With a top speed of up to 17.8 ips, you can increase your workflow tempo significantly. You can also switch between three different speed levels directly on the scanner’s intuitive touch panel. If speed doesn’t impress you, look at the width.

This series includes the world’s first 60-inch CCD scanner, but also comes in 36- and 42-inch widths. The size-flexibility, our Nextimage software and the unprecedented scan width gives you the flexibility to be smart and create a more efficient workflow.

With the HD Ultra X series, we have tried to reduce the total cost of ownership because we know how much it matters to you. We’ve used optimised LED lights, so you don’t have to think about replacing the lamps. Nor do you have to worry about maintenance to the same extent as other large format scanners. Best of all we´ve made the glass super-resistant to scratches and created a paper handling design that will prolong the life of your consumables.

This all adds up to the most efficient and flexible large format scanner series on the market.


USB 3.0 SuperSpeed xDTR3

We have adapted our xDTR technology to work with the USB 3.0 SuperSpeed protocol increasing its performance dramatically. It has the fastest data transfer rate of any scanner on the market.

Gigabit Ethernet xDTR2.5

Optimized for up to 100 MB per second. Up to 60% faster transfer rate than with xDTR2 thanks to new improved electronics.

Gbit throttling buffer control

1GB buffer eliminates scanner pausing. Maintain your scan speeds and meet those deadlines

Contex True Size Detection

HD Ultra X finds the paper width as it scans. No wasted time. No shoe shine just instant width detection. No more backwards and forwards movement of document while feeding it into the scanner. Just load and scan.

Static Free Touchless Glass System

Enjoy virtually scratch free glass plates thanks to the new design of the white background pressure plate in the HD Ultra X. The pressure point is offset of the scanning line helping the glass stay free from scratches. The Minimal-friction, floating transport design of glass plate with new quick-release magnetic scan glass system, makes replacement or cleaning of glass plate easier and faster than ever.







Order Today!

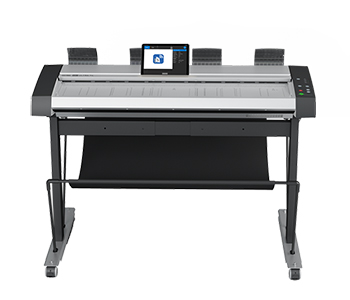

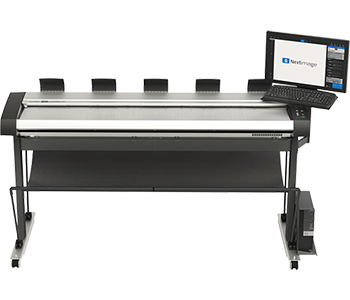

Contex HD Ultra X 3690  Wide Format Scanner


Contex HD Ultra X 3690 Scanner  Contex HD Ultra X 3690 Scanner   Contex HD Ultra X 3690 Scanner


Canon DR-6030C Scanner Brochure

Other Contex Scanners


Contex CCD scanners use premium Fujifilm lenses to
   bring you highresolution images in the best quality
   available on the market today.

Save valuable time with the ability to
   start scanning without the warm-up time.

HD Ultra X finds the paper width automatically
   as it scans.

Quickly and easily adjust the scanner
   to the thickness of any original with Optimal thickness
   adjustment control.

Three different speed levels at your fingertips
   on the touch panel makes it easy to adapt the scanner.



















CLICK HERE FOR DRIVERS

  Energy Star Certified Fuji Film Lenses RoHS RoHS

  • Specifications
  • Features
  • Accessories
  • Parts
  • In the box
  • Warranty
Model Contex HD Ultra X 3690
Maximum Scan Width 36 inch (914 mm)
Resolution 1200 dpi
Enhanced resolution 9,600 dpi
Scanning speed (inch/sec.) 17.8 ips in 200dpi Grayscale/Monochrome, 17.8"/s in 200 dpi RGB Color
Productivity (documents/hour): Batch scanning for 60 minutes. Includes paper load and eject time. Measured in completed scans.

Arch E-size, RGB Color, 200dpi portrait load: 875 pages
Arch E-size, portrait, monochrome: 875 pages

Scan accuracy 0.1% +- 1 pixel
Maximum thickness 0.06-inch (15 mm)
Data Capture (color/mono)
48-bit color / 16-bit grey scale
Color space Adobe RGB, Device RGB, RAW RGB, sRGB
Interface USB 3.0 with xDTR3, Gigabit Ethernet with xDTR2.5
Weight/dimension/power
49.3 kg (109 lbs) / LxWxH: 1360 mm (53.6’’) x 540 mm (21’’) x 279 mm (11’’), Max 39W / 1W / 130W (built-in power supply)
Device Drivers Windows 11 64-bit, Windows 10 32-bit and 64-bit
System software WIDEsystem (driver): Nextimage 5 iOS app (portable device) Android tablet/phone OS also
TWAIN 64-bit TWAIN application driver included for use with EDM and other imaging software
Host platforms 64-bit Windows 11, 10, 8, Windows 7
Certifications RoHS, REACH, cUL, CE, Customs Union, CCC, VCCI, ENERGY STAR® certified



Contex Large Format Printers Cert Banner

Contex True Size Detection

HD Ultra X finds the paper width as it scans. No wasted time. No shoe shine just instant width detection. No more backwards and forwards movement of document while feeding it into the scanner. Just load and scan.

Static Free Touchless Glass System

Enjoy virtually scratch free glass plates thanks to the new design of the white background pressure plate in the HD Ultra X. The pressure point is offset of the scanning line helping the glass stay free from scratches. The Minimal-friction, floating transport design of glass plate with new quick-release magnetic scan glass system, makes replacement or cleaning of glass plate easier and faster than ever.

OTAC

Optimized Thickness Adjustment Control. With one press of a lever, raise and lower the OTAC to suit required media thickness. It is very fast.

FlexDoc

Combining automatic thickness adjustment control (ATAC), all wheel drive (AWD), automatic contour correction and a new paper pressure adjustment, Flex- Doc enables you to scan anything from newspaper-thin documents to posters on foam boards, gator boards and other bulky documents up to 0.6" thick.

FlexFeed

With removable, no-rewind paper return guides, right-side loading, a funnelshaped feeder, and a convenient new exit tray, FlexFeed takes the hassle out of scanning any document, even up to 36″ wide.

SnapSize

SnapSize makes it faster and easier to switch between different-sized documents by eliminating the need for manual software adjustments. Precision optical paper sensors register your document size and adjust the required settings automatically.

SmartShare

This allows all users in a workgroup to operate the scanner from their own computer via Ethernet.

USB 3.0 SuperSpeed xDTR3

We have adapted our xDTR technology to work with the USB 3.0 SuperSpeed protocol increasing its performance dramatically. It has the fastest data transfer rate of any scanner on the market.

Gigabit Ethernet xDTR2.5

Optimized for up to 100 MB per second. Up to 60% faster transfer rate than with xDTR2 thanks to new improved electronics.

Gbit throttling buffer control

1GB buffer eliminates scanner pausing. Maintain your scan speeds and meet those deadlines

Contex Perfect Light

Contex Perfect Light in the HD Ultra X comes from engineers carefully selecting the very latest in light-emitting diode technology (LEDs) and combining this with specially developed diffusion filters.

AccuColor

To get the best results, your scanner and software should work with full 48-bit data. Where other scanners ignore some of this data, the HD Ultra is the world's wide format scanner with true 48-bit color capture.

CCD

Contex uses All-Digital cameras with advanced point-of-origin capture and onboard digital conversion ensuring minimum noise and an extended dynamic range. The unique four-linear CCD technology, with a special panchromatic line, ensures that no colors are lost when scanning monochrome. Quality colormatched fluorescent lamps ensure the market's highest standards for color correctness.

ALE

Accuracy Lens Enhancement (ALE) technology that electronically maintains 0.1% +- pixel precision across any two points of the scan line thus exceeding even the most rigid requirements in the industry today. Contex delivers a very high grade of precision stability in the scanned image.




High-quality lenses

Contex CCD scanners use premium Fujifilm lenses to bring you high-resolution images in the best quality available on the market today.

Using the highest quality LED lights on the market and the latest Contex CCD technology, our research shows that the optimal color reproduction is already achieved at 4000 Kelvin.

Adobe RGB

The preferred choice for color professionals who need the maximum number of colors from the scanning process and is the best choice for high-quality printing. sRGB color space is best for display viewing and general printing.

ICC profiles work to ensure accurate color reproduction on your chosen device (the device must be able to support selected color space).

Fujifilm lenses

Using lenses specially selected to support the size and resolutions used in the HD Ultra X 6000 scanner. This avoids the uneven sharpness and chromatic distortions that can occur when using cheaper, smaller lenses.

Contex CCD's are Quadlinear which means we have a red, green, blue and black channel on our CCD's. This gives us the truest grayscale and monochrome. Our closest competitor uses Tri linear CCD's which mean they only have red, green and blue and must get their monochrome and grayscale from the green channel which does not reproduce the best mono or grayscale.

Contex Natural Light

Fuji Film Lenses

Only a high Color Rendering Index ensures accurate colors. The CRI (Color Rendering Index) is an indicator of how close artificial color reproduction is compared to natural light. Natural light has a CRI of 100. A Contex HD Ultra X scanner uses a light source with a high CRI CRI (more than 90). Compensated by the perfect light system, this is by far the highest CRI amongst CCD large format scanners.

X-Rite ICC profiles

X-Rite is the global leader in color science and technology. The Company, which now includes color industry leader Pantone, Inc., develops, manufactures, markets and supports innovative color solutions through measurement systems, software, color standards and services. X-Rite's expertise in inspiring, selecting, measuring, formulating, communicating and matching color helps users get color right the first time, and every time, which translates to better quality and reduced costs. X-Rite serves a range of industries, including scanning, printing, packaging, photography, graphic design, video, automotive, paints, plastics, textiles, dental and medical.


Contex HD Ultra X 3690 Features



Software
Description Mfg# Price Cart
Nextimage SCAN+ARCHIVE
Contex Full-featured Productivity Scanning software
9691A601 $650.00 Add
Nextimage REPRO license
Contex Touch-compatible Full-featured Productivity Scan + Copy software
9691A602 $1,295.00 Add
JETimageNET Copy Software
Contex Touch-compatible Full-featured Copy software
9691A053 $1,690.00 Add
Nextimage MFP to REPRO Upgrade
Upgrade from Nextimage MFP (requires installed MFP license)
9691A089 $1,425.00 Add
Nextimage SCAN+ARCHIVE to REPRO
Upgrade from Nextimage Scan + Archive to Repro (Requires installed Nextimage Scan+ Archive license)
9691A603 $1,050.00 Add

Post Sale Upgrades
Description Mfg# Price Cart
License HD upg. 36" to 42"
Field upgrade of HD 36" scanner to HD 42" scanner
6799G525 $475.00 Add
License HD Upg. Mono to 8.9 ips color
Upgrade monochrome to 8.9 ips Color
6799G537 $2,375.00 Add
License to upgrade 8.9 ips to 17.8 ips color
Upgrade color from 8.9 ips to 17.8 ips.
6799G539 $3,087.50 Add
HD X Accessories
Description Mfg# Price Cart
17-inch Touchscreen LCD
For use with IQ 4400, SD and HD Ultra MFP stands
0090B080R01 $1,494.00 Add
Low Adjustable Stand, 42''- 44''
Low adjustable stand including document basket
2200H003 $890.00 Add
Multi-Purpose Receiving Tray, HD Ultra Series
Catch basket/tray, thick document support, supports up to 30 x A0 standard documents. Not compatible with MFP stands.
2200H009 $1,000.00 Add
Customer care kit
includes lamp cartridge , white background plate and micro fiber cleaning cloth
2898A171 $1,367.55 Add
Dust Cover for HD Ultra Series
also compatible with older HD series 36/42-inch scanners
6799D101R01 $68.00 Add
Document carrier sheet
24 x 36 inch carrier sheet landscape
6399A403 $112.59 Add
Document carrier sheet
36 x 48 inch carrier sheet portrait
6399D133 $227.65 Add
USB2.0 Cable, A/B, 3m
USB2.0 Cable, Shielded, A/B, 3m
0090B068R01 $73.46 Add
Consumables
Description Mfg# Price Cart
Calibration Sheet, 42" HD Ultra
Contex Calibration Sheet, 42" HD Ultra
6798G016 $372.97 Add
Care Kit, 42" HD Ultra
Contex Lamp cartridge, Glass plate, White background plate, & Micro fiber cloth
2898A171 $1,367.55 Add
Filter kit, 92x92 (for 0080C032)
Contex Filter kit, 92x92
0080C031R01 $59.34 Add
Glass Plate, 42", packed
Contex Glass Plate, 42", packed
6729D187R01 $717.68 Add
LCAB, Lamp Cartridge, 42'' (Rx67G)
Contex Lamp Cartridge for the HD Ultra series scanners.
6798G015 $856.13 Add
White Background Plate #3, 42", packed
Contex White Background Plate for HD Ultra series scanners.
6798G017 $135.62 Add
Adj. Tools for Roller Sensor (2 pcs.)
Contex White Background Plate for HD Ultra series scanners.
6779D133R01 $132.80 Add
Adj. Tools for Top Pos. Sensor (2 pcs.)
Contex White Background Plate for HD Ultra series scanners.
6779D246R01 $330.59 Add
Optical Adjustment Pattern, 5C42 (Rx67G)
Contex White Background Plate for HD Ultra series scanners.
6798G022 $1,556.86 Add

Boards (Electronics)
Description Mfg# Price Cart
Camera Module, Rx67G
Contex Camera for the HD Ultra 42"
6798G006 $1,669.88 Add
IBCA, Interconnection Board C (Keyboard)
This is used in the SD, SD3600, HD Ultra 42, HD iFlex and XD Mx52D scanner models only. This is the small board located just below the Operators Panel.
5231D001R01 $141.27 Add
LMH Variant A
Lamp Board for the HD Ultra scanners
6798G004 $1,251.70 Add
MDAD, Elevation Motor Driver Ver. D
ATAC Control Board in the HD Ultra scanner.
6798G007 $904.16 Add
SMPS, VFT80US24
Switch Mode Power Supply for the HD Ultra 42" and HD iFlex
6798G005 $517.08 Add
SUNA, SUN Variant A
This is the main controller board in the HD Ultra scanner
6798G003 $5,201.75 Add
Other Parts
Description Mfg# Price Cart
Lamp Cartridge Cover for 6702G021
This is the lamp cartridge cover for the Ultra series scanners.
6798G014 $98.90 Add
ATAC Closed Sensors
Contex ATAC Closed Sensors
6798G002 $166.71 Add
Cable, Interface with Mold
Rear interface ports on the HD Ultra scanner
6798G001 $152.58 Add
Castors (4 pcs.)
For IQ, SD and HD Ultra 42" model stands
0601A005R01 $141.27 Add
Cooling Fan, 92x92 mm
Contex Cooling Fan, 92x92 mm
0080C032R01 $127.00 Add
Cover Assy, Rx67G (incl Operators Panel)
Contex Cover Assy, Rx67G (incl Operators Panel)
6798G013 $638.57 Add
DC Gear Motor, 12V, 392:1, ø27mm
Camera height adjustment motor - HD Ultra scanner
6798G008 $197.78 Add
Elevation Motor terminated (350mm)
ATAC elevation motor - HD Ultra scanner
6798G009 $401.22 Add
Feed-Rollers #2, 42" (2 pcs.)
Lower feed rollers for the HD Ultra scanner
6798G018 $963.50 Add
OGP (ATAC) wo Top Profile, 42" (RA67G)
Complete Guideplate Assy. for HD Ultra scanner
6798G010 $3,495.15 Add
Optointerrupter
Contex Optointerrupter
0075A050R01 $79.12 Add
Paper/Lid Sensor (1 pcs.)
Contex Paper/Lid Sensor (1 pcs.)
0075A160R01 $124.33 Add
Paperguide (Rx67G)
Contex Paperguide (Rx67G)
6798G020 $115.84 Add
Return Guide (HD Ultra) packed
Contex Return Guide (HD Ultra) packed
6798G021 $107.37 Add
RFI-Filter
This is for SD Mx52A and HD Ultra 42", HD and G600 models only.
0077E038R01 $130.00 Add
Side Guide, Right (Rx67G)
Contex Side Guide, Right (Rx67G)
6798G019 $110.20 Add
Stepper Motor
Contex Stepper Motor
0080C018R01 $308.00 Add
Gas Spring, 200N A40
Contex Gas Spring, 200N A40
6798G011 $353.19 Add
Contex Inlet
This part is used in both the SD Mx52A scanners, HD Ultra 42", Hawk-Eye and Flatbed models.
0007S046R01 $110.20 Add
LHS End Cover, Rx67G
Contex LHS End Cover, Rx67G
6798G012 $217.57 Add
  • Contex HD Ultra X 3690
  • Power cable
  • 64-bit TWAIN application driver included for use with EDM and other imaging software
  • User documentation
  • Scanner Maintenance Software
  • Maintenance Sheet
Standard Warranty: 24 months parts only.
Extended Spare Parts Warranty
Description Mfg# Price Cart
1 Year Warranty Extension for Spare Parts
Extends spare parts warranty to 3 years. Must register scanner within 3 months of delivery.
2898A124 $554.00 Add
3 Years Warranty Extension for Spare Parts
Extends spare parts warranty to 5 years. Must register scanner within 3 months of delivery.
2898A125 $995.00 Add
1 Year Warranty Extension for Spare Parts - POST (within factory warranty)
Extends spare parts warranty to 3 years. Must register scanner within factory warranty.
2898A141 $782.00 Add
3 Years Warranty Extension for Spare Parts - POST (within factory warranty)
Extends spare parts warranty to 5 years. Must register scanner within factory warranty.
2898A142 $1,495.00 Add

On-Site Warranty
Description Mfg# Price Cart
Onsite Service - 2 years - HD
Optional 2 Years On-site Warranty for HD scanners -pricing available at time of purchase with a new HD scanner.
2898A118HD $995.00 Add
Onsite Service - 3 years - SD/IQ44 or HD
3 Years On-site Warranty Available only at time of purchase.
2898A119 $2,020.00 Add
Onsite Service - 4 years - SD36/IQ44 or HD
4 Years On-site Warranty Available only at time of purchase.
2898A120 $2,765.00 Add
Onsite Service - 5 years - SD36/IQ44 or HD
5 Years On-site Warranty Available only at time of purchase.
2898A121 $3,610.00 Add
Onsite Extention - 1 year - SD36/IQ44 or HD (in warranty)
1 Year On-site Warranty Extension -for products currently under warranty
2898A122 $1,295.00 Add
Onsite Extention - 1 year - (XD24/IQ24, SD36/IQ44 and HD - (post warranty)
1 Year On-site Warranty -for products NOT currently under warranty. Not available on past models.
2898A123 $1,395.00 Add

You can also order from Wholesale Scanners by calling 425-748-7155.

Copyright © Wholesale Scanners Inc. All rights reserved.

Contex Main Page
